2mm-12mm PCB Flat Bottom Counterbore Drill Bit
  • name

2mm-12mm PCB Flat Bottom Counterbore Drill Bit

MOQ: 1000PCS
Price: Negotiable
Standard Packaging: small Plastic box
Delivery Period: 2 weeks
Payment Method: T/T
Supply Capacity: 1000000PCS per 30days
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
DTECH or OEM
Certification
ISO9001/TS16949
Model Number
RJZ Router

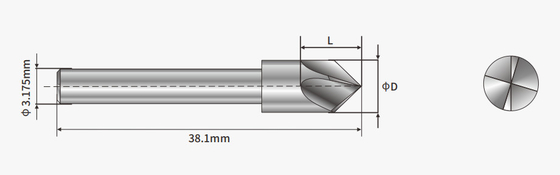

Shank Diameter:
3.175mm
Overall Length:
38.1mm
Diameter:
2.0MM-12.0MM
Body Length:
5.0mm-12.mm
Drill Shape Type:
PCB Router
Minimum Order Quantity:
1000PCS
Price:
Negotiable
Packaging Details:
small Plastic box
Delivery Time:
2 weeks
Payment Terms:
T/T
Supply Ability:
1000000PCS per 30days
Highlight:

1mm pcb router bits

,

2.0mm pcb router bits

,

1mm four flute router bits

Product Description
Espeically used for counterboring .
2mm-12mm PCB Flat Bottom Counterbore Drill Bit 0

ROUTER END TYPE

1.2mm-12mm PCB Flat Bottom Counterbore Drill Bit 1

.Flat bottom type: no rear blade which is suitable for periphery routers
that not used for drilling.
2.2mm-12mm PCB Flat Bottom Counterbore Drill Bit 2
.Fishtale type:the most standard blade tip, it is also known as standard
routers , which is suitable for drilling routers.
3.2mm-12mm PCB Flat Bottom Counterbore Drill Bit 3
.Drilling tip type: it can prevent the resistance brought by drilling ,so it is suitable
for the routers that needs drilling.

DRILL SHAPE TYPE
1.2mm-12mm PCB Flat Bottom Counterbore Drill Bit 4
Ru type: It is suitable for NC shaping machines which is used for vacuum devices equipment since
the powder in the right cutting notch will be discharged upwards
2.2mm-12mm PCB Flat Bottom Counterbore Drill Bit 5
Rd type: It is suitable for manual shaping machines since in the left cutting notch
will be discharged downwards
Tags:

1mm pcb router bits,

1mm four flute router bits,

2.0mm pcb router bits
