RCF PCB Router Bits 0.5mm-2.5mm Solid Carbide Flat Bottom Drills
  • name

RCF PCB Router Bits 0.5mm-2.5mm Solid Carbide Flat Bottom Drills

MOQ: 1000PCS
Price: Negotiable
Standard Packaging: small Plastic box
Delivery Period: 2 weeks
Payment Method: T/T
Supply Capacity: 1000000PCS per 30days
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
DTECH or OEM
Certification
ISO9001/TS16949
Model Number
RCF Router

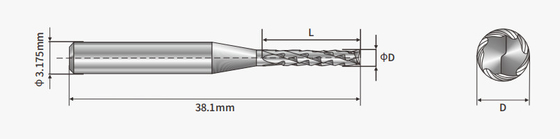

Shank Diameter:
3.175mm
Overall Length:
38.1mm
Diameter:
0.50mm-2.5mm
Body Length:
4.5mm-10.5mm
Drill Shape Type:
RCF Router
Minimum Order Quantity:
1000PCS
Price:
Negotiable
Packaging Details:
small Plastic box
Delivery Time:
2 weeks
Payment Terms:
T/T
Supply Ability:
1000000PCS per 30days
Highlight:

rcf pcb router bits

,

pcb router bits 0.5mm

,

2.5mm solid carbide flat bottom drills

Product Description
Standrad router, Excellent scrap removal capability, cutting sharp,
good board edge, Excellent comprehensive performance.
PCB RCF Standard Router Cutting Sharp
RCF PCB Router Bits 0.5mm-2.5mm Solid Carbide Flat Bottom Drills 0

ROUTER END TYPE

1.RCF PCB Router Bits 0.5mm-2.5mm Solid Carbide Flat Bottom Drills 1

.Flat bottom type: no rear blade which is suitable for periphery routers
that not used for drilling.
2.RCF PCB Router Bits 0.5mm-2.5mm Solid Carbide Flat Bottom Drills 2
.Fishtale type:the most standard blade tip, it is also known as standard
routers , which is suitable for drilling routers.
3.RCF PCB Router Bits 0.5mm-2.5mm Solid Carbide Flat Bottom Drills 3
.Drilling tip type: it can prevent the resistance brought by drilling ,so it is suitable
for the routers that needs drilling.

DRILL SHAPE TYPE
1.RCF PCB Router Bits 0.5mm-2.5mm Solid Carbide Flat Bottom Drills 4
Ru type: It is suitable for NC shaping machines which is used for vacuum devices equipment since
the powder in the right cutting notch will be discharged upwards
2.RCF PCB Router Bits 0.5mm-2.5mm Solid Carbide Flat Bottom Drills 5
Rd type: It is suitable for manual shaping machines since in the left cutting notch
will be discharged downwards
Tags:

1mm pcb router bits,

1mm four flute router bits,

2.0mm pcb router bits
