Flexible Material Millling RFF PCB Router Bits 3.175mm Shank Diameter
  • name

Flexible Material Millling RFF PCB Router Bits 3.175mm Shank Diameter

MOQ: 1000PCS
Price: Negotiable
Standard Packaging: small Plastic box
Delivery Period: 2 weeks
Payment Method: T/T
Supply Capacity: 1000000PCS per 30days
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
DTECH or OEM
Certification
ISO9001/TS16949
Model Number
RFF Router

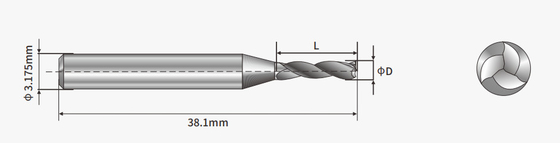

Shank Diameter:
3.175mm
Overall Length:
38.1mm
Diameter:
0.4mm-2.40mm
Body Length:
1.5mm-10.0mm
Drill Shape Type:
PCB Router
Minimum Order Quantity:
1000PCS
Price:
Negotiable
Packaging Details:
small Plastic box
Delivery Time:
2 weeks
Payment Terms:
T/T
Supply Ability:
1000000PCS per 30days
Highlight:

RFF PCB Router Bits

,

Flexible Material Millling PCB Router Bits

,

3.175mm Shank router bit PCB

Product Description
These routers is used for flexible material millling .
PCB RFF Router Use For Flexible Material Millling
Flexible Material Millling RFF PCB Router Bits 3.175mm Shank Diameter 0

ROUTER END TYPE

1.Flexible Material Millling RFF PCB Router Bits 3.175mm Shank Diameter 1

.Flat bottom type: no rear blade which is suitable for periphery routers
that not used for drilling.
2.Flexible Material Millling RFF PCB Router Bits 3.175mm Shank Diameter 2
.Fishtale type:the most standard blade tip, it is also known as standard
routers , which is suitable for drilling routers.
3.Flexible Material Millling RFF PCB Router Bits 3.175mm Shank Diameter 3
.Drilling tip type: it can prevent the resistance brought by drilling ,so it is suitable
for the routers that needs drilling.

DRILL SHAPE TYPE
1.Flexible Material Millling RFF PCB Router Bits 3.175mm Shank Diameter 4
Ru type: It is suitable for NC shaping machines which is used for vacuum devices equipment since
the powder in the right cutting notch will be discharged upwards
2.Flexible Material Millling RFF PCB Router Bits 3.175mm Shank Diameter 5
Rd type: It is suitable for manual shaping machines since in the left cutting notch
will be discharged downwards
Tags:

1mm pcb router bits,

1mm four flute router bits,

2.0mm pcb router bits
