Repair Edge PCB Router Bits Gold Finger PCB Milling Bits 38.1mm Overall
  • name

Repair Edge PCB Router Bits Gold Finger PCB Milling Bits 38.1mm Overall

MOQ: 1000PCS
Price: Negotiable
Standard Packaging: small Plastic box
Delivery Period: 2 weeks
Payment Method: T/T
Supply Capacity: 1000000PCS per 30days
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
DTECH or OEM
Certification
ISO9001/TS16949
Model Number
Repair edge Router

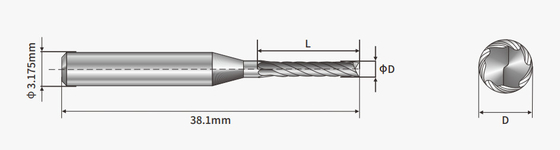

Shank Diameter:
3.175mm
Overall Length:
38.1mm
Diameter:
0.50mm-1.60mm
Body Length:
3.0mm-8.5mm
Drill Shape Type:
Repair Edge Router
Minimum Order Quantity:
1000PCS
Price:
Negotiable
Packaging Details:
small Plastic box
Delivery Time:
2 weeks
Payment Terms:
T/T
Supply Ability:
1000000PCS per 30days
Highlight:

pcb milling bits 38.1mm

,

repair edge pcb router bits

,

pcb router bits gold finger

Product Description
These router used for Gold Finger PCB,TFFE board fine milling and can achieve   perfect board edge and well size accuracy.
PCB Repair edge Router Use For Gold Finger
Repair Edge PCB Router Bits Gold Finger PCB Milling Bits 38.1mm Overall 0

ROUTER END TYPE

1.Repair Edge PCB Router Bits Gold Finger PCB Milling Bits 38.1mm Overall 1

.Flat bottom type: no rear blade which is suitable for periphery routers
that not used for drilling.
2.Repair Edge PCB Router Bits Gold Finger PCB Milling Bits 38.1mm Overall 2
.Fishtale type:the most standard blade tip, it is also known as standard
routers , which is suitable for drilling routers.
3.Repair Edge PCB Router Bits Gold Finger PCB Milling Bits 38.1mm Overall 3
.Drilling tip type: it can prevent the resistance brought by drilling ,so it is suitable
for the routers that needs drilling.

DRILL SHAPE TYPE
1.Repair Edge PCB Router Bits Gold Finger PCB Milling Bits 38.1mm Overall 4
Ru type: It is suitable for NC shaping machines which is used for vacuum devices equipment since
the powder in the right cutting notch will be discharged upwards
2.Repair Edge PCB Router Bits Gold Finger PCB Milling Bits 38.1mm Overall 5
Rd type: It is suitable for manual shaping machines since in the left cutting notch
will be discharged downwards
Tags:

1mm pcb router bits,

1mm four flute router bits,

2.0mm pcb router bits
