High Rigidity Design Slot PCB Router Bits
  • name

High Rigidity Design Slot PCB Router Bits

MOQ: 1000PCS
Price: Negotiable
Standard Packaging: small Plastic box
Delivery Period: 2 weeks
Payment Method: T/T
Supply Capacity: 1000000PCS per 30days
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
DTECH or OEM
Certification
ISO9001/TS16949
Model Number
SDX SLOT Router

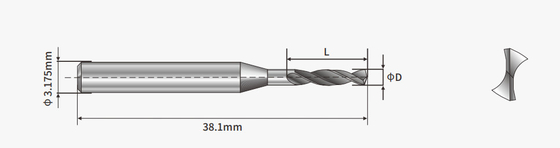

Shank Diameter:
3.175mm
Overall Length:
38.1mm
Diameter:
0.40mm-3.0mm
Body Length:
4.0mm-8.50mm
Drill Shape Type:
PCB Router
Minimum Order Quantity:
1000PCS
Price:
Negotiable
Packaging Details:
small Plastic box
Delivery Time:
2 weeks
Payment Terms:
T/T
Supply Ability:
1000000PCS per 30days
Highlight:

1mm pcb router bits

,

38.1mm pcb router bits

,

1mm four flute router bits

Product Description
High rigidity desgin slot, more suitable for short/long slot turining.
PCB High Rigidity Desgin Slot, More Suitable For Short/Long Slot Turining.
High Rigidity Design Slot PCB Router Bits 0

ROUTER END TYPE

1.High Rigidity Design Slot PCB Router Bits 1

.Flat bottom type: no rear blade which is suitable for periphery routers
that not used for drilling.
2.High Rigidity Design Slot PCB Router Bits 2
.Fishtale type:the most standard blade tip, it is also known as standard
routers , which is suitable for drilling routers.
3.High Rigidity Design Slot PCB Router Bits 3
.Drilling tip type: it can prevent the resistance brought by drilling ,so it is suitable
for the routers that needs drilling.

DRILL SHAPE TYPE
1.High Rigidity Design Slot PCB Router Bits 4
Ru type: It is suitable for NC shaping machines which is used for vacuum devices equipment since
the powder in the right cutting notch will be discharged upwards
2.High Rigidity Design Slot PCB Router Bits 5
Rd type: It is suitable for manual shaping machines since in the left cutting notch
will be discharged downwards
Tags:

1mm pcb router bits,

1mm four flute router bits,

2.0mm pcb router bits
