ISO7089 M3-M52 Stainless Steel Plain Washers Hardness Class 200 HV-300HV
  • name

ISO7089 M3-M52 Stainless Steel Plain Washers Hardness Class 200 HV-300HV

MOQ: 1000PCS
Price: Negotiable
Standard Packaging: small box or ,cartons ,then 36 CNTs packed in pallet
Delivery Period: 45days
Payment Method: L/C, T/T,
Supply Capacity: 100tons per 30days
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
TET
Certification
ISO9001/TS16949
Model Number
ISO7089 /ISO7092/ISO7093
Standard:
ISO7089
Material:
Stainless Steel 304,316
Surface Treatment:
Plain
Size:
M3-M52
Finish:
Polished
Application:
General Industry,Heavy Industry,Automotive Industry,Inserts,Mining
Product Name:
Stainless Steel Large Plain Washers
Packing:
Small Box+carton+pallet
Measurement System:
Metric,Imperial (Inch)
Type:
Precision Nonstandard Parts(OEM Service)
Minimum Order Quantity:
1000PCS
Price:
Negotiable
Packaging Details:
small box or ,cartons ,then 36 CNTs packed in pallet
Delivery Time:
45days
Payment Terms:
L/C, T/T,
Supply Ability:
100tons per 30days
Highlight:

ISO7089 Stainless Steel Plain Washers

,

M3 Stainless Steel Plain Washers

,

M52 Stainless Steel Plain Washers

Product Description

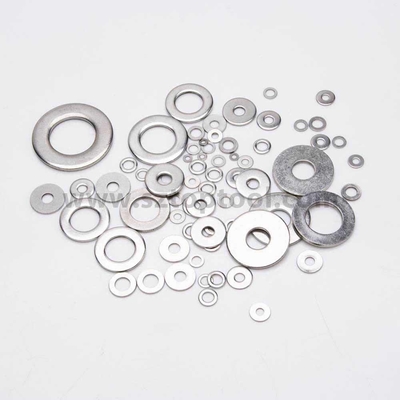

Stainless steel flat washer ,ISO7089A

Hardness :200HV-300HV

Size:M3-M52

Output: 150Tons per month

Packing: small box packing or Bulk packing

Material: stainless steel 304,316,A2/A4

Marking: 304 ,316,A2  A4

Washers of hardness class 200 HV are suitable for:
hexagon bolts and screws of product grades A and B in property classes up to and including 8.8;
 hexagon nuts of product grades A and B in property classes up to and including 8;
 hexagon bolts, screws and nuts of stainless steel of similar chemical composition;
 case-hardened thread rolling screws.
Washers of hardness class 300 HV are suitable for
 hexagon bolts and screws of product grades A and B in property classes up to and including 10.9;
 hexagon nuts of product grades A and B in property classes up to and including 10.
If dimensions other than those listed in this International Standard are required, they should be selected from those
given in ISO 887.
When soft material pieces are clamped, or large clearance holes in the workpiece are used, the user should check
the technical suitability of this type of washer.

ISO7089 M3-M52 Stainless Steel Plain Washers Hardness Class 200 HV-300HV 0


ISO7089 M3-M52 Stainless Steel Plain Washers Hardness Class 200 HV-300HV 1

ISO7089 M3-M52 Stainless Steel Plain Washers Hardness Class 200 HV-300HV 2
